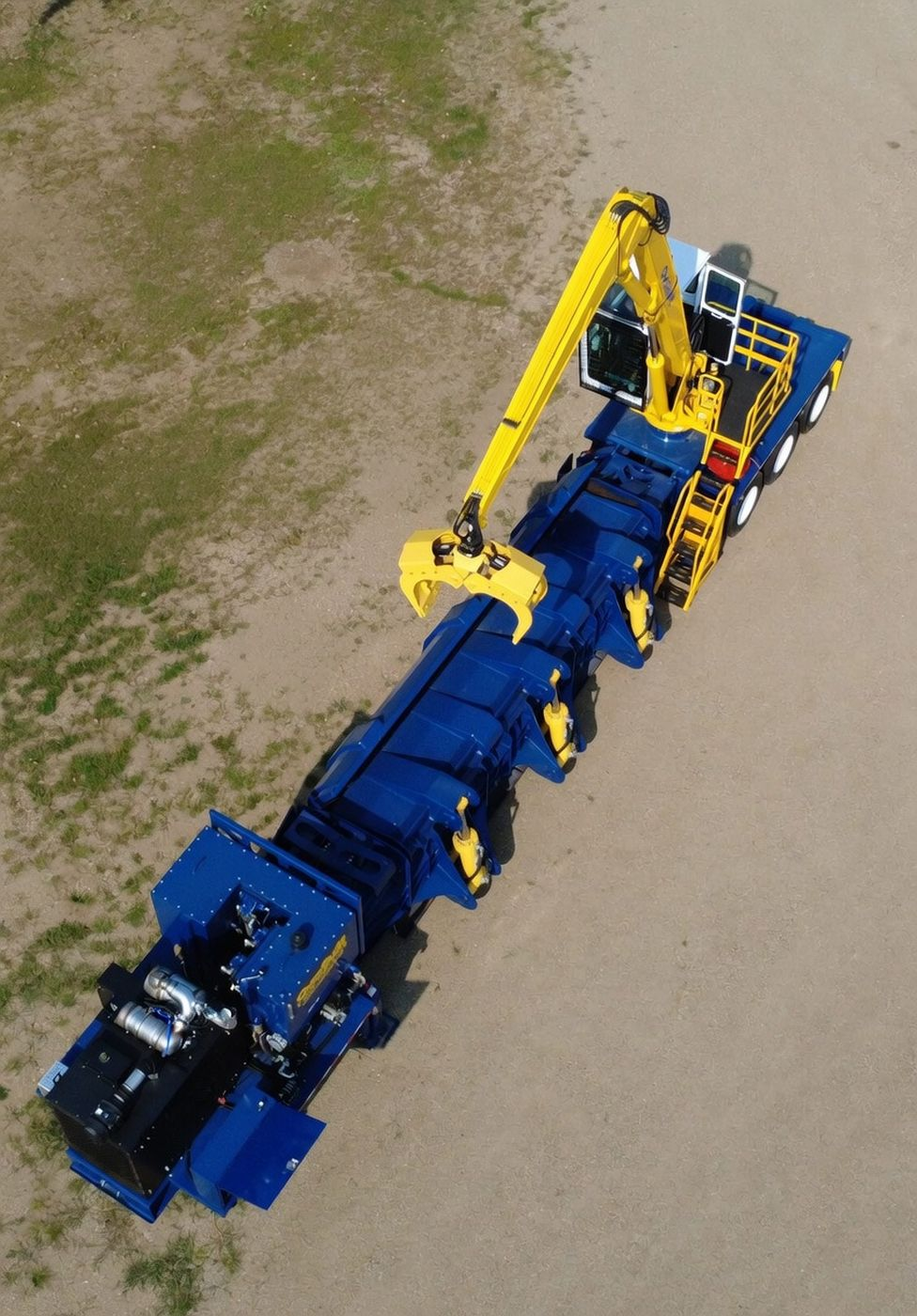

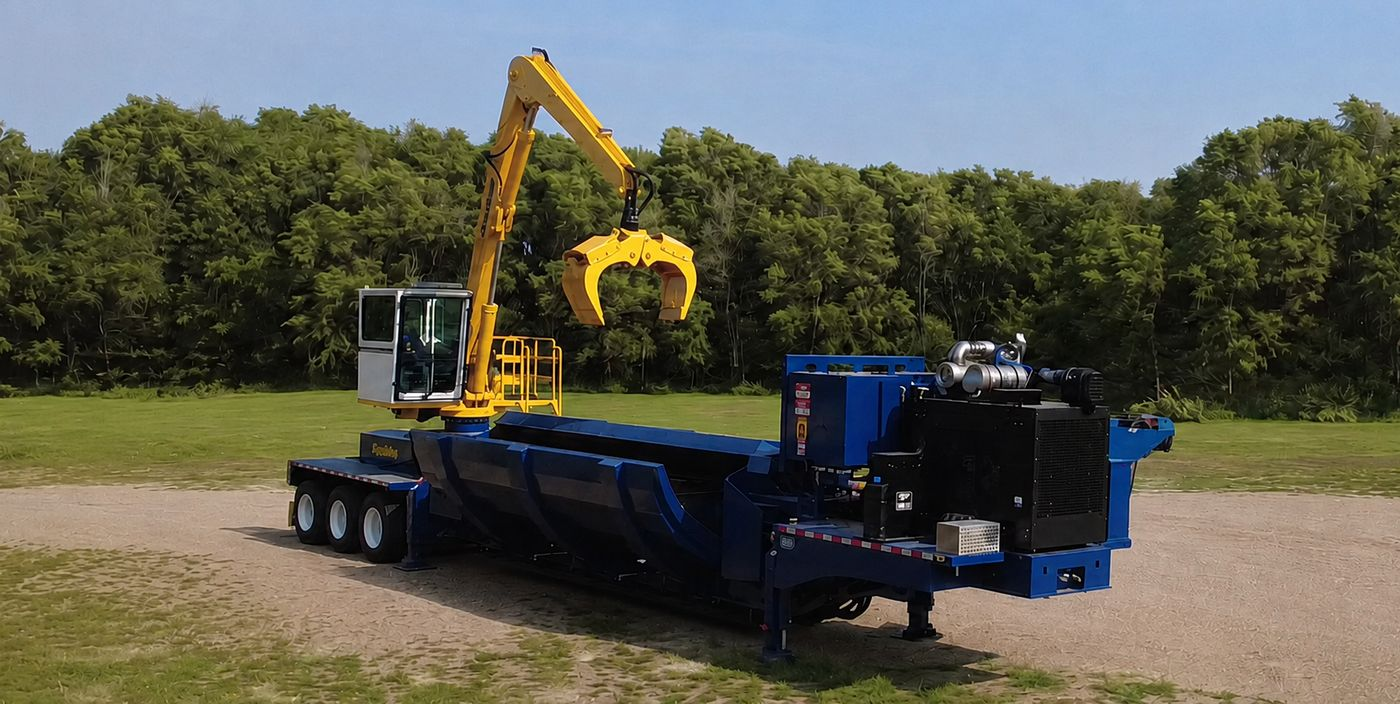

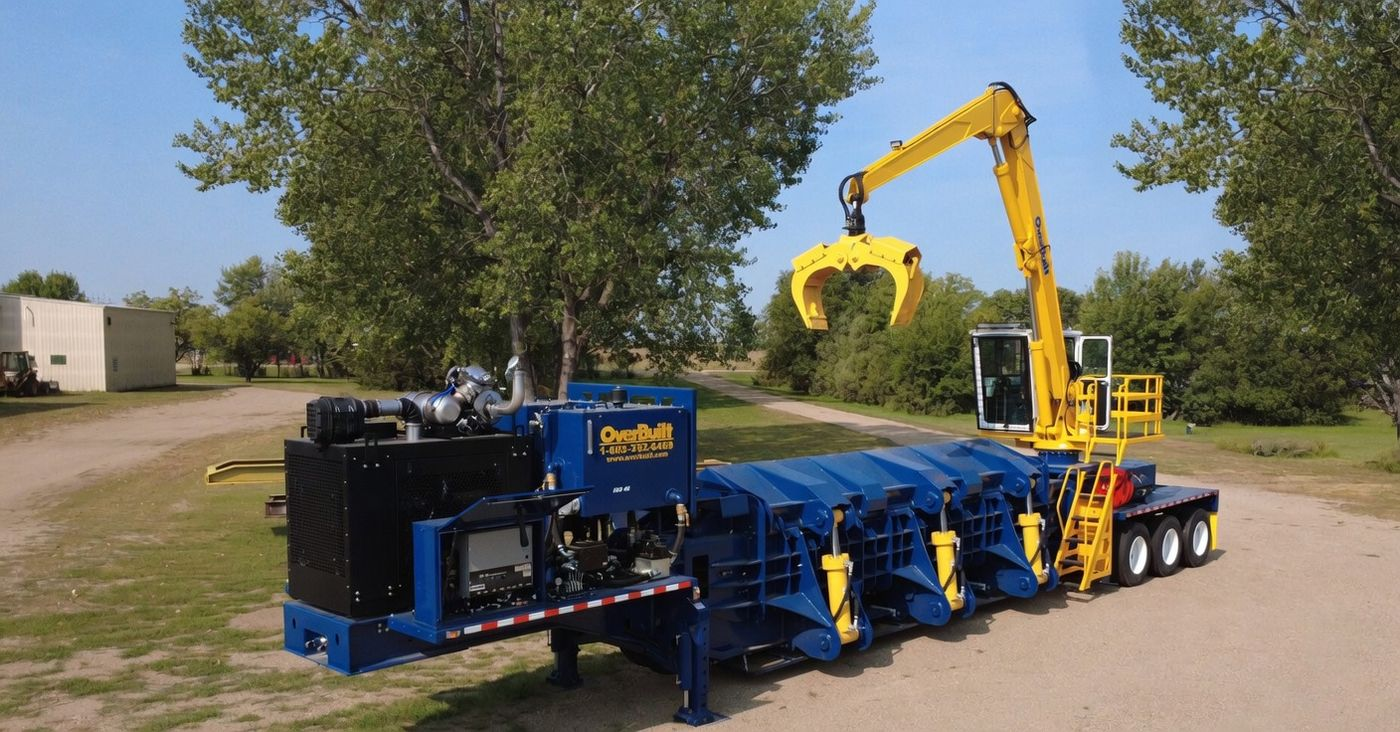

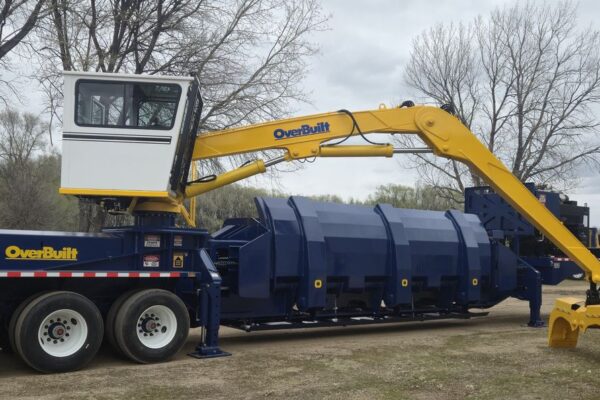

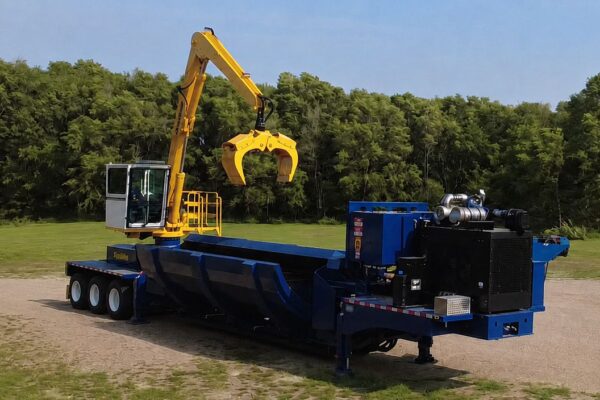

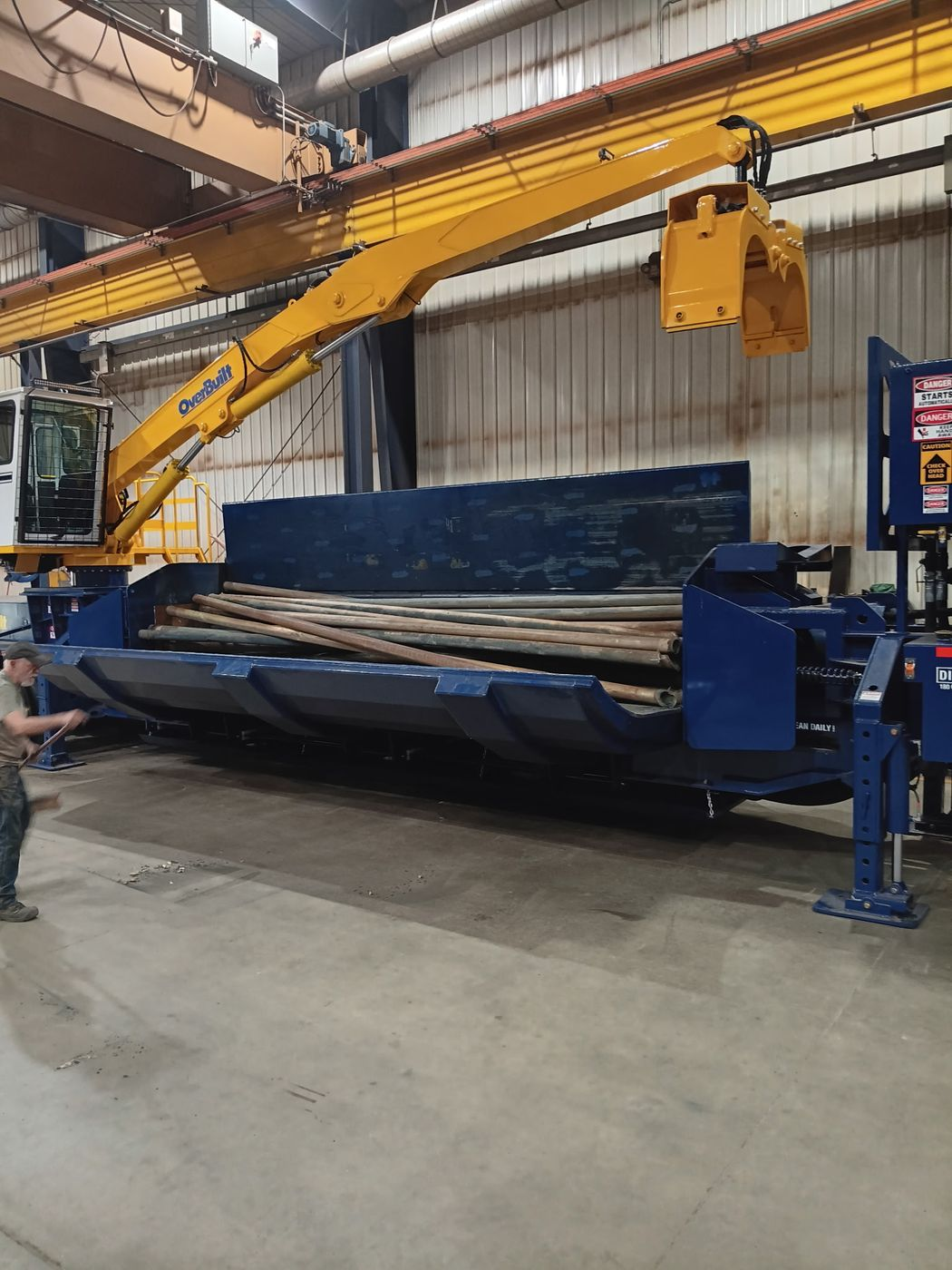

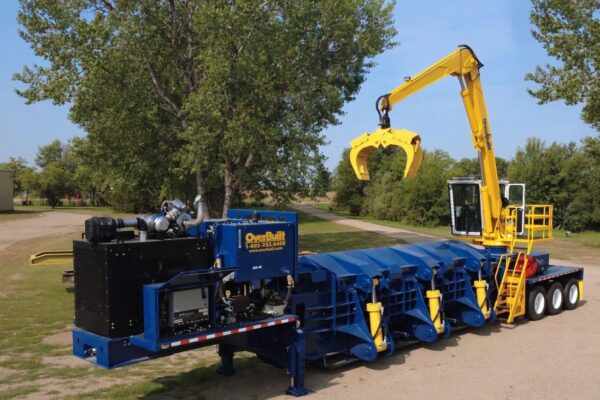

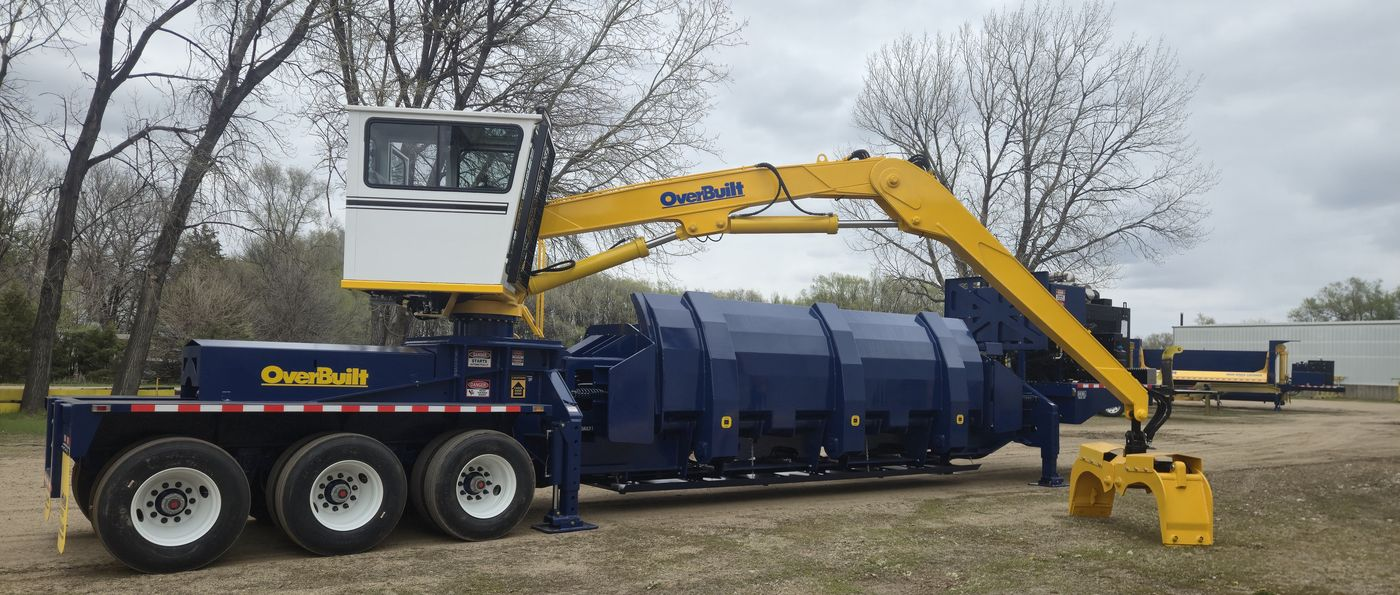

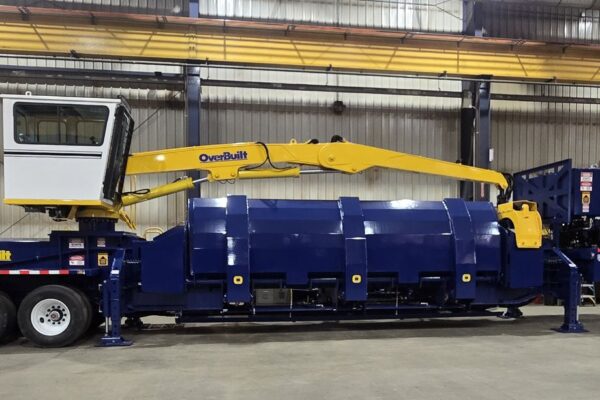

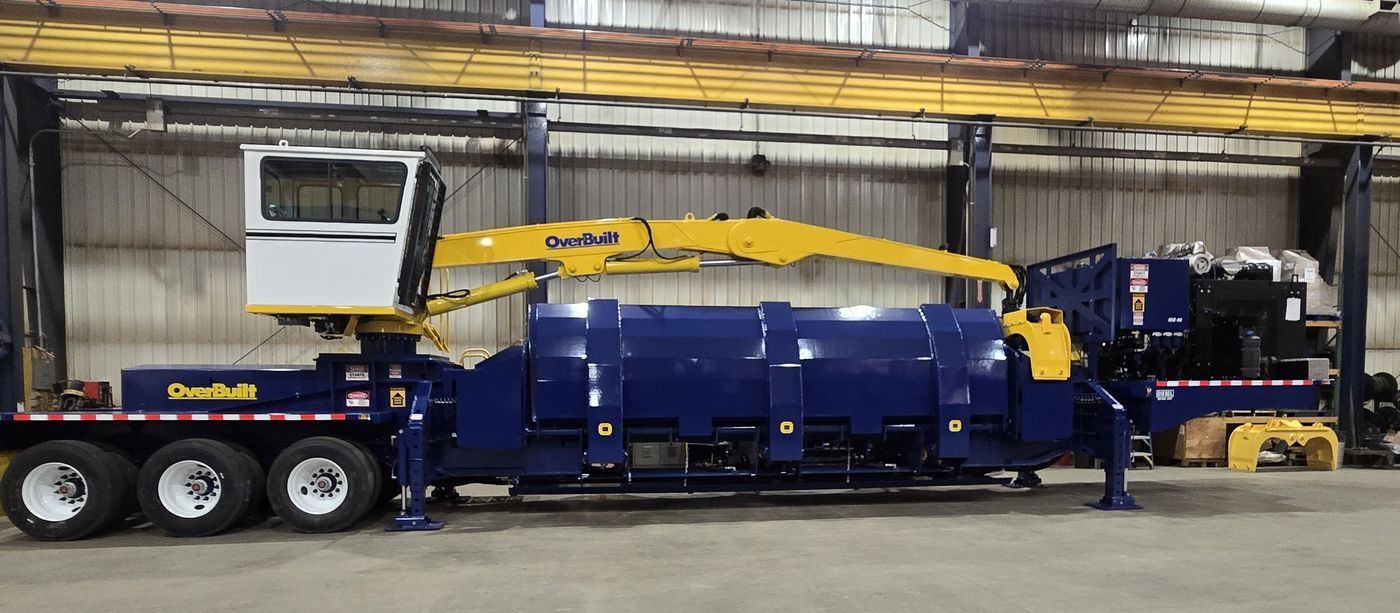

Baler / Logger - OverBuilt

The OverBuilt baler/loggers are the fastest, most efficient baler/loggers any scrap recycler can own. Compressing scrap metal and vehicles into denser, stackable forms results in more efficient loading and transport.

Specifications

Imperial

Metric

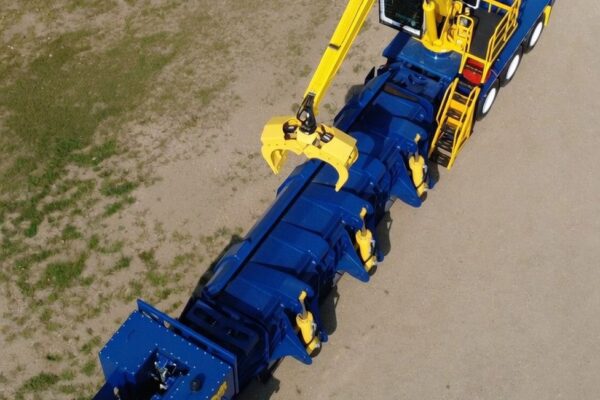

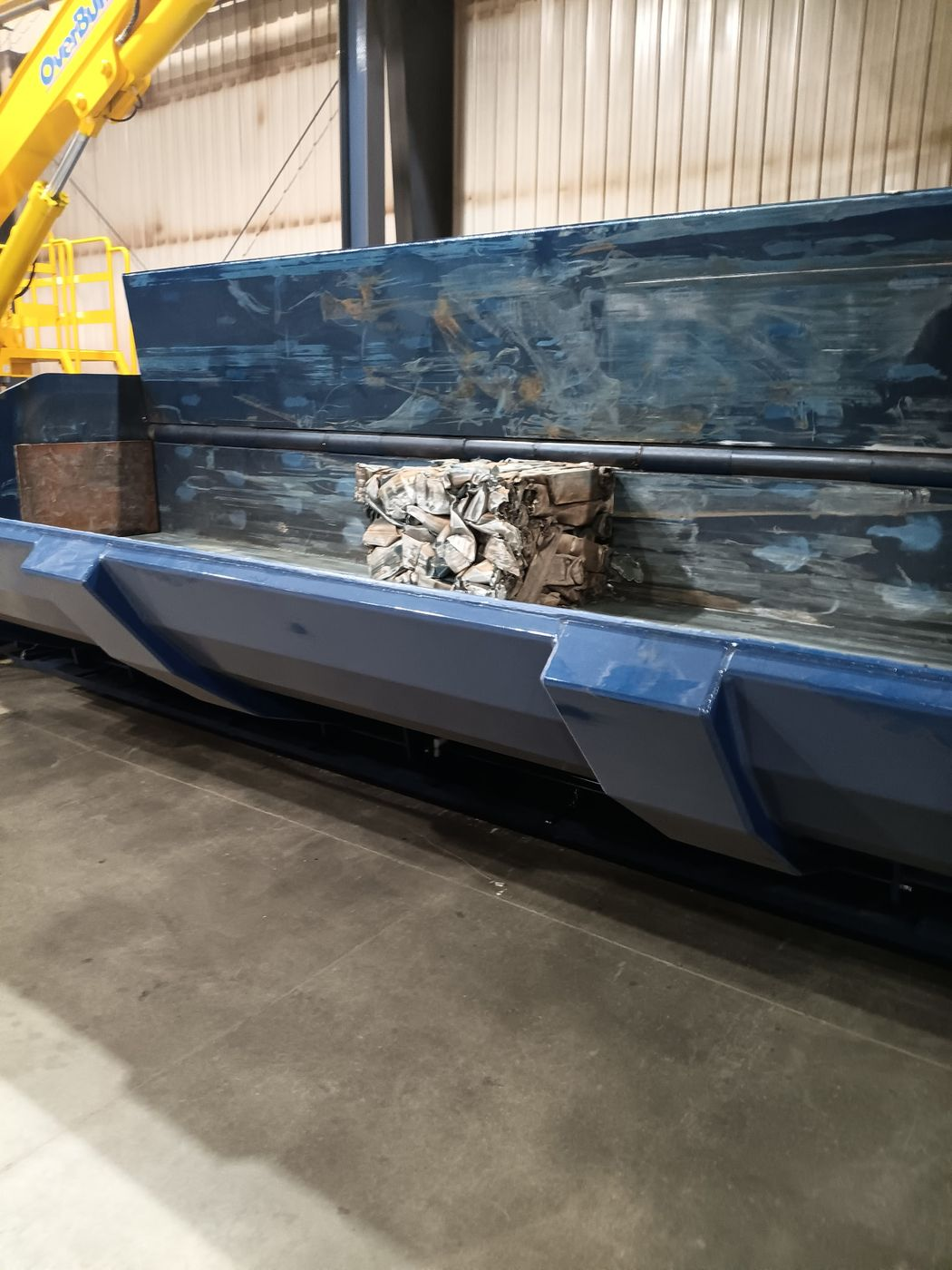

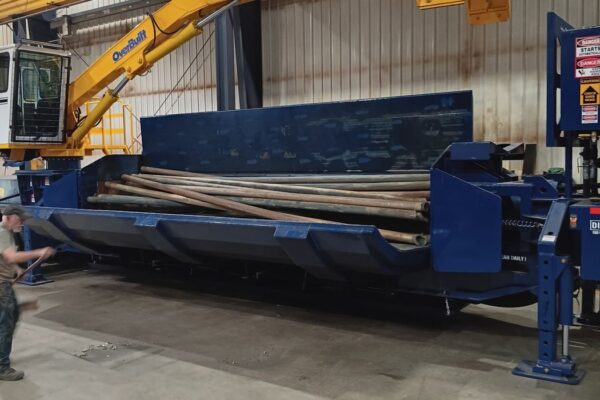

Charge Box

Open	20’ x 8’ 5”
Closed	240” L x 40” W x 26” H

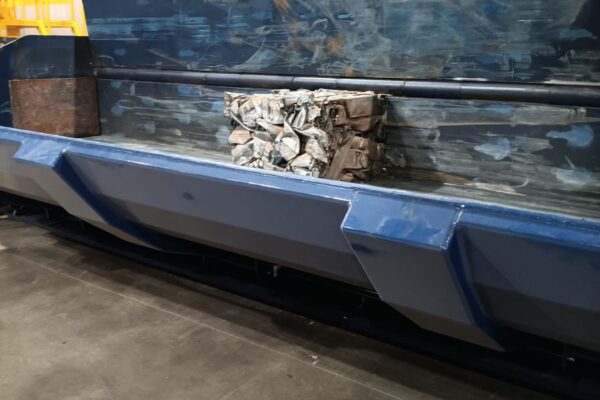

Bale Size	40” x 26” x Variable
Minimum Variable Distance	22”
Bale Density	25 – 80 lbs/ft³

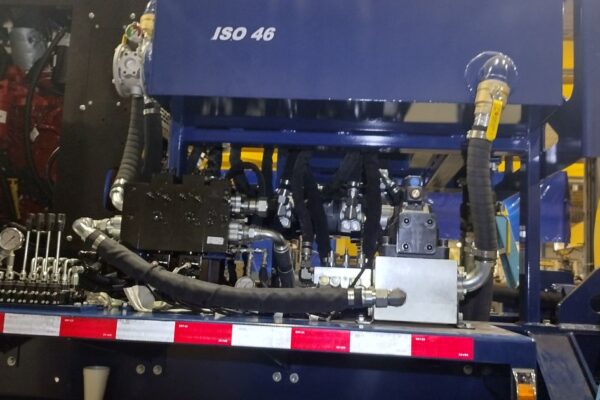

Cylinders

Main Compression Cylinders	2
Logging Force (per side)	175 Tons
Charge Box Door Cylinders	6
Baling Force (per door)	255 Tons

Overall

Weight	98,000 lbs
Length	52’ 4”
Travel Height	13’
Travel Width	8’
Ground Clearance	11”

Charge Box

Open	6.096 m x 2.565 m
Closed	6.096 m L x 1.016 m W x 0.660 m H
Bale Size	1.016 m x 0.660 m x Variable
Minimum Variable Distance	55.88 cm
Bale Density	400 – 1,281 kg/m³

Cylinders

Main Compression Cylinders	2
Logging Force (per side)	158.76 MT
Charge Box Door Cylinders	6
Baling Force (per door)	231.33 MT

Overall

Weight	44,452 kg
Length	15.95 m
Travel Height	3.962 m
Travel Width	2.438 m
Ground Clearance	27.94 cm
