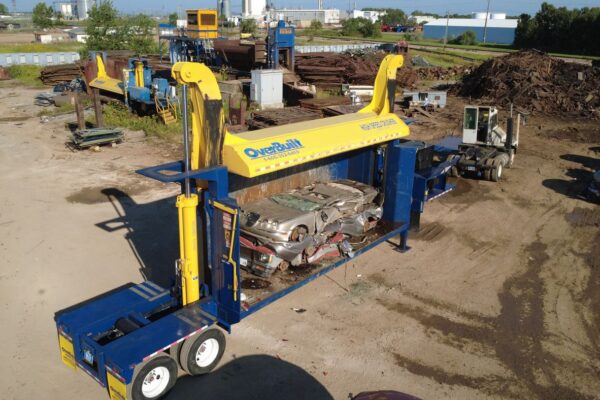

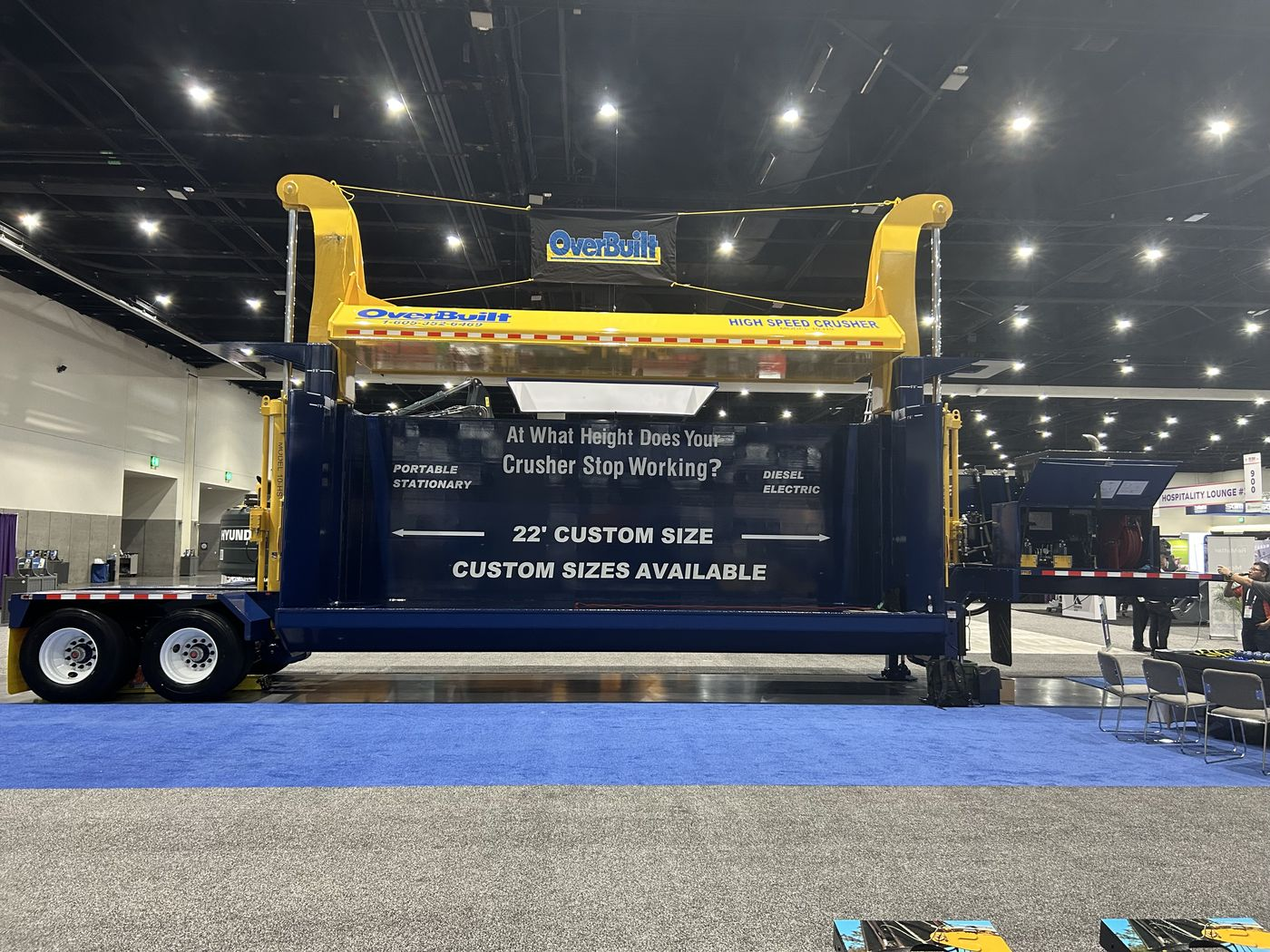

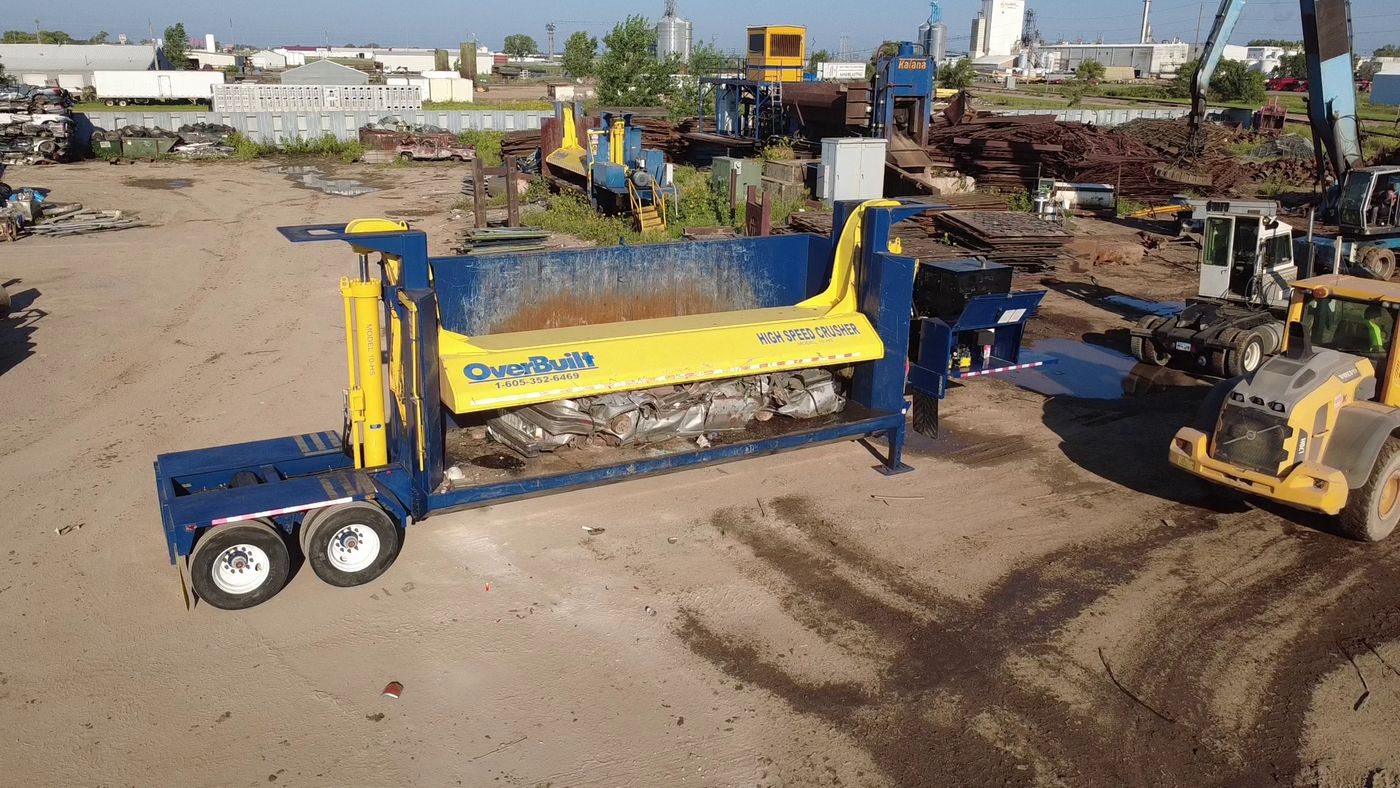

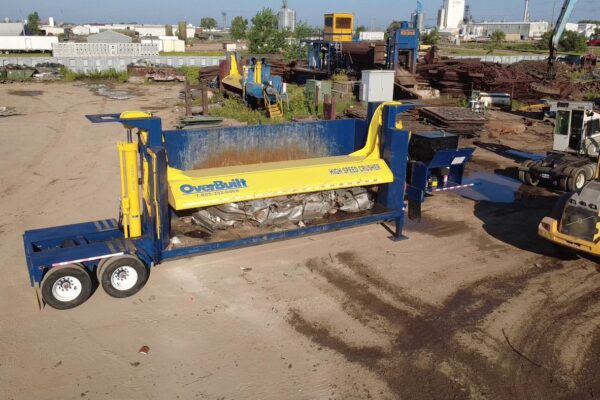

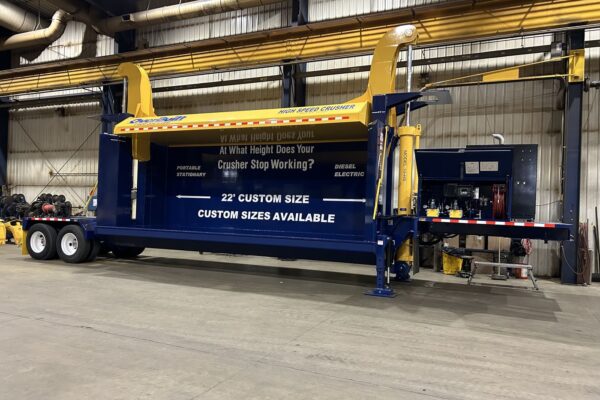

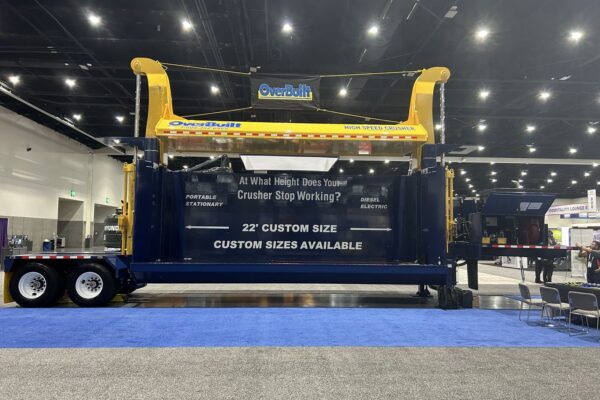

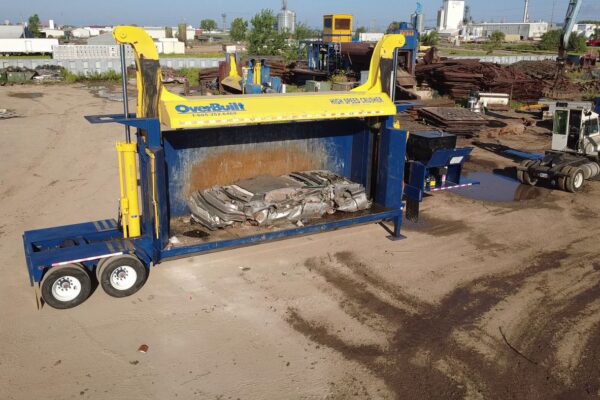

Car Crusher

Built standard with its 10 foot opening the OverBuilt Car Crusher has the highest opening on the market. In addition, it has a remarkable 159 tons of crushing power.

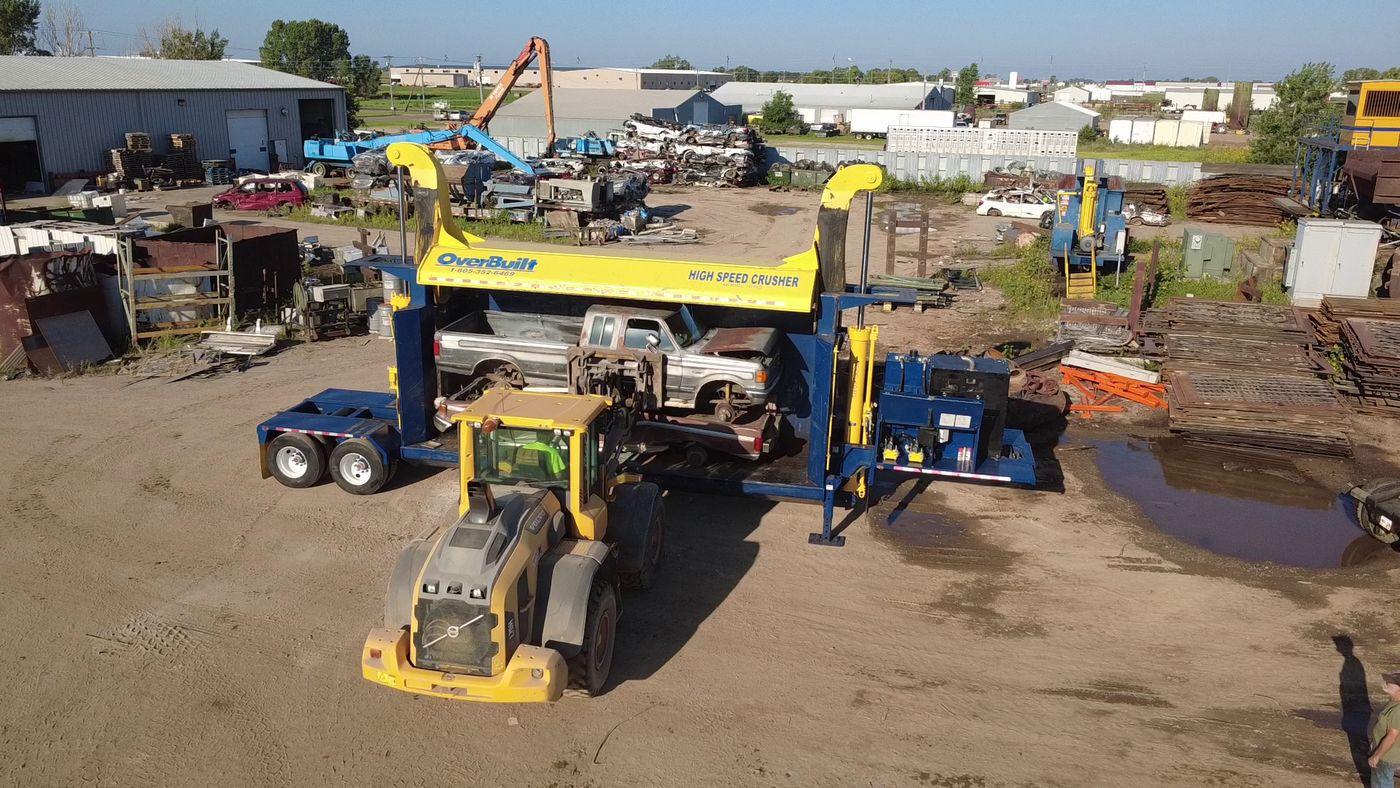

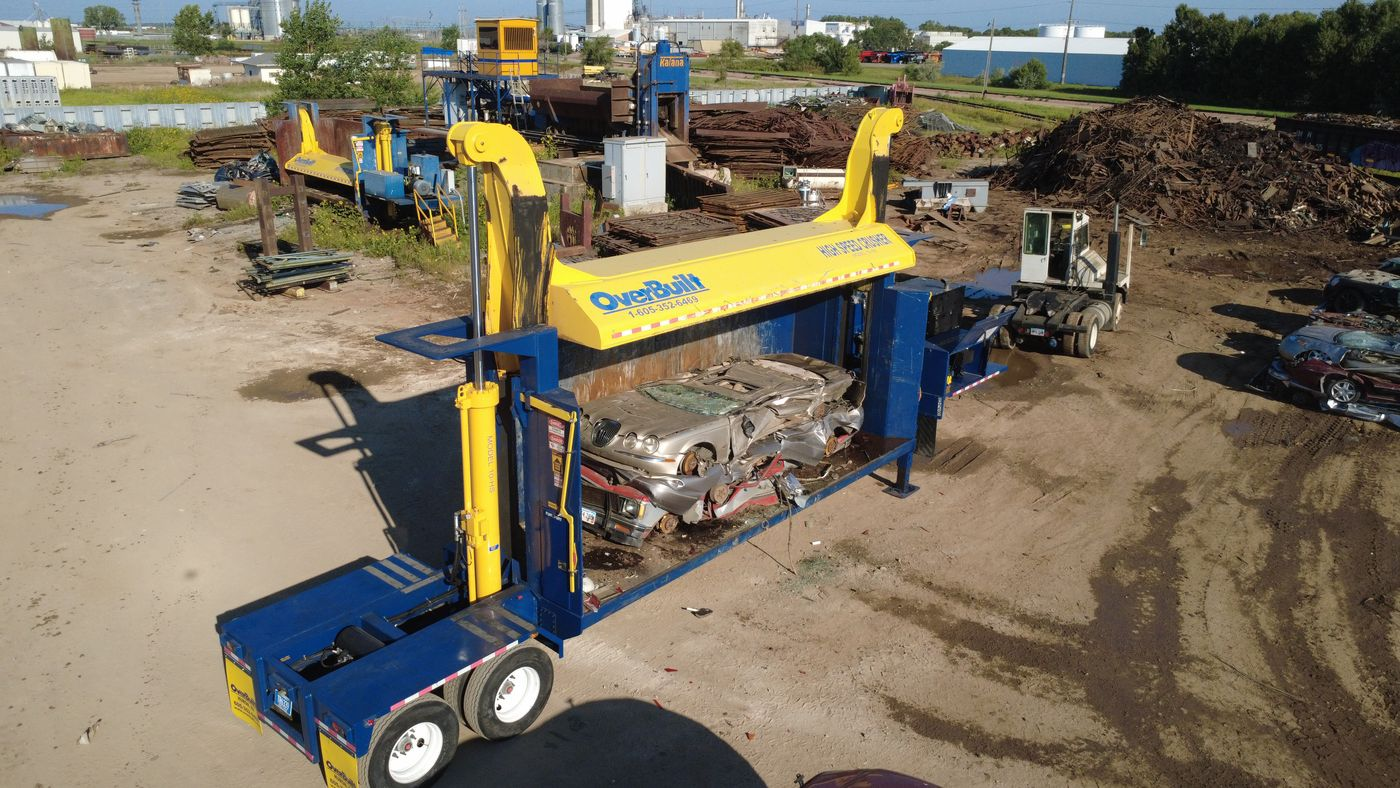

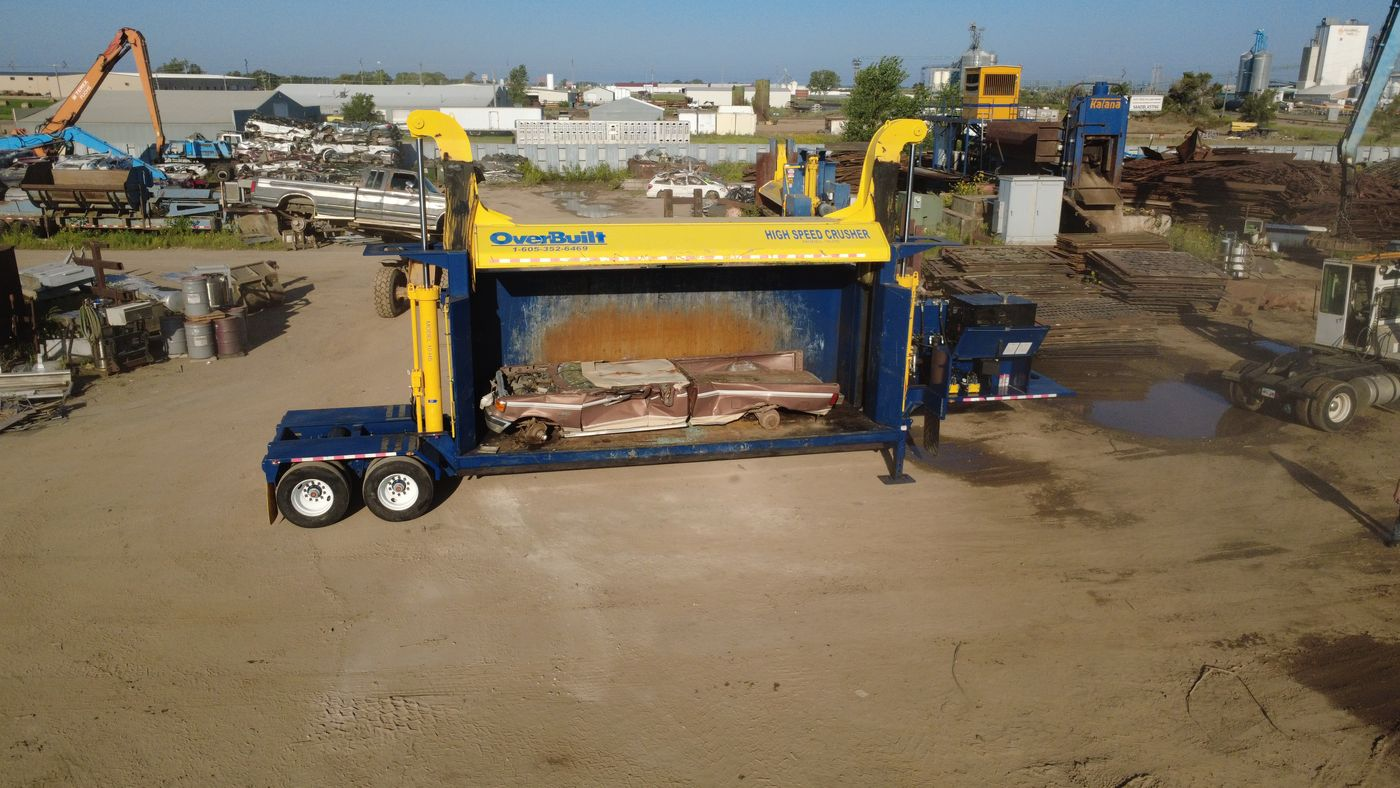

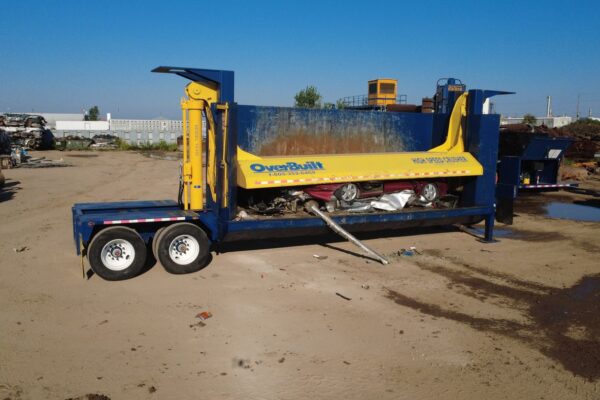

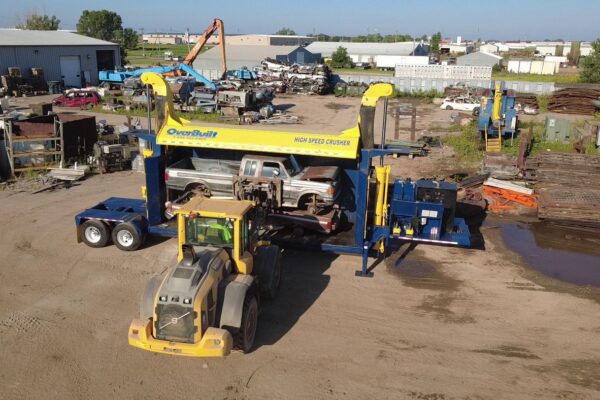

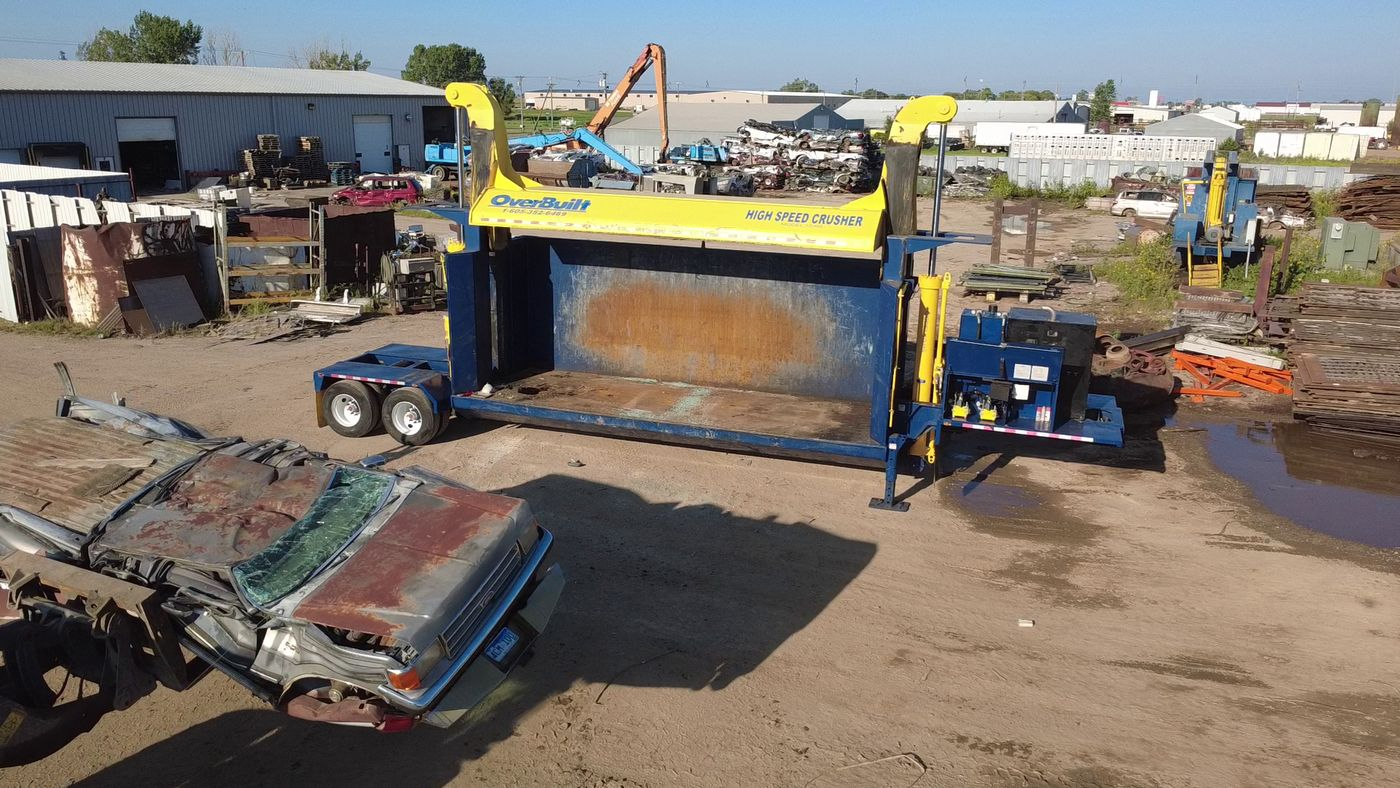

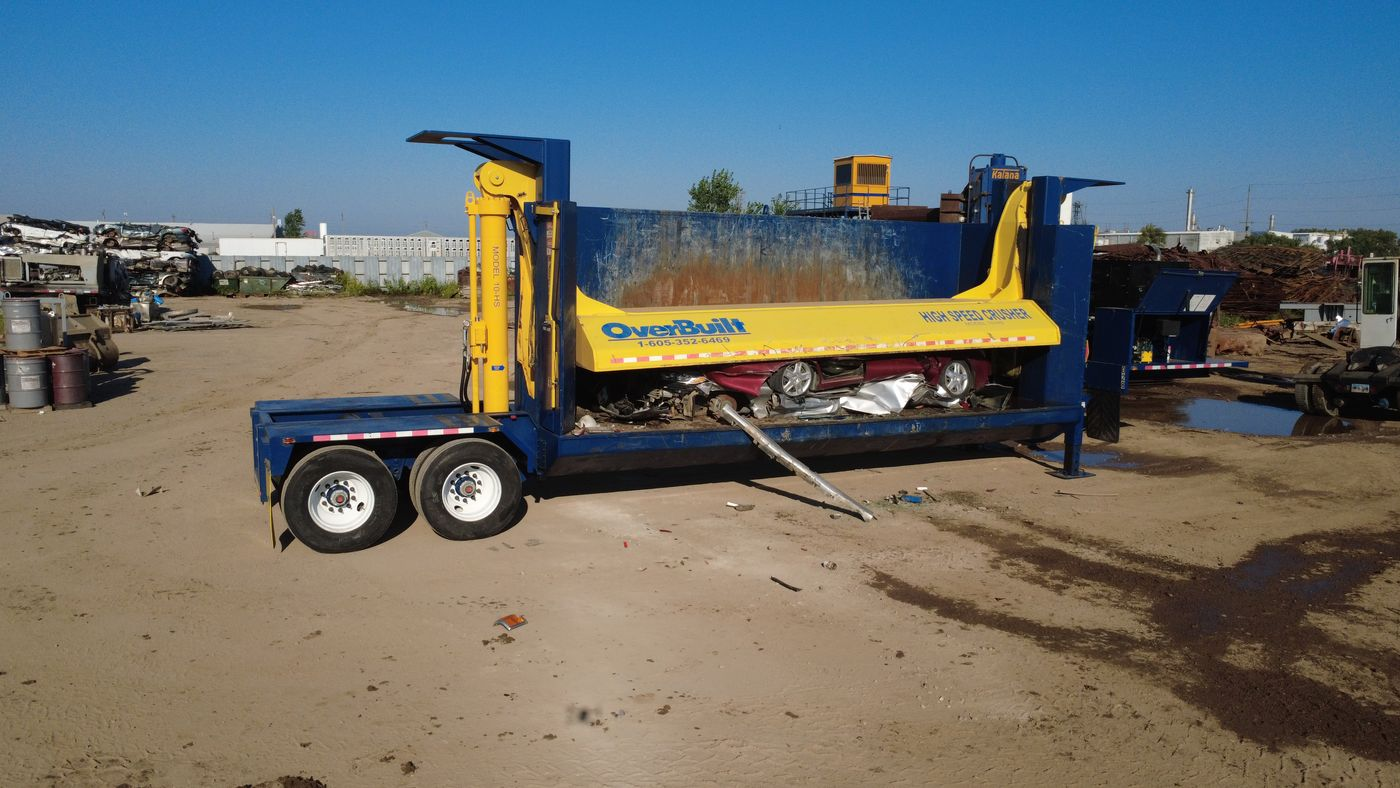

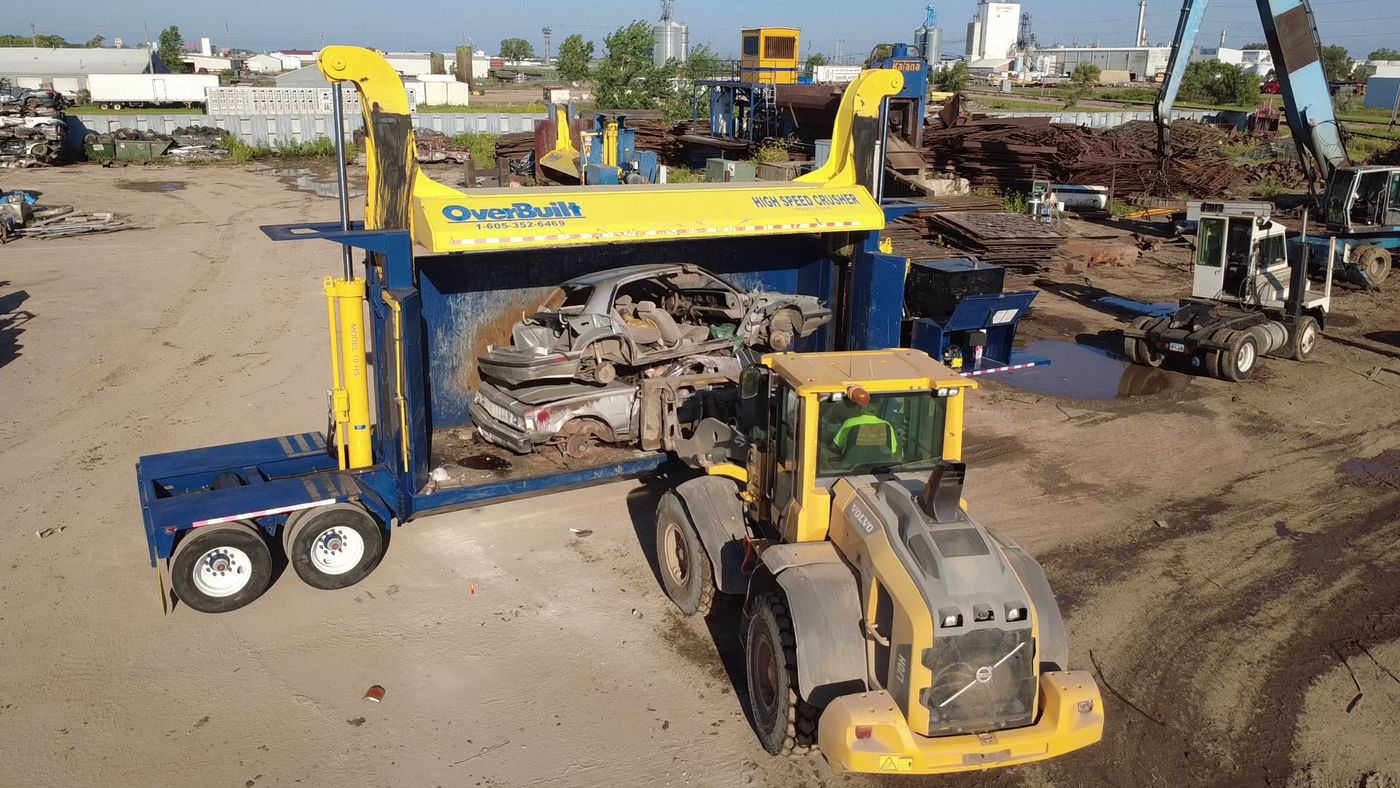

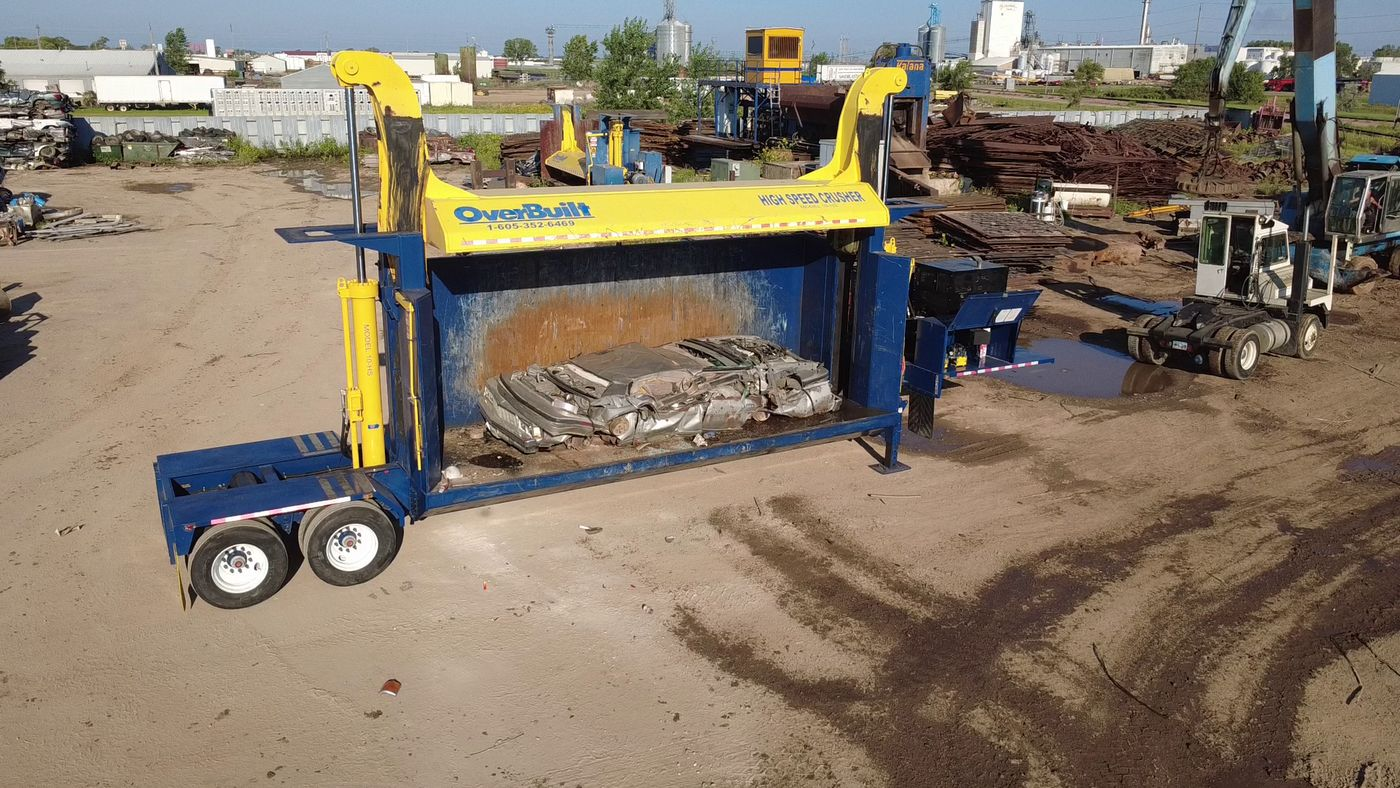

See It In Action

Specifications

Imperial

Metric

Crusher Opening

Height (raised)10’ ***
Height (lowered)24”
Width7’ 6”
Length20’ 3”, 22’ 2”, 24’ 1”
Lid Movement (travel)8’

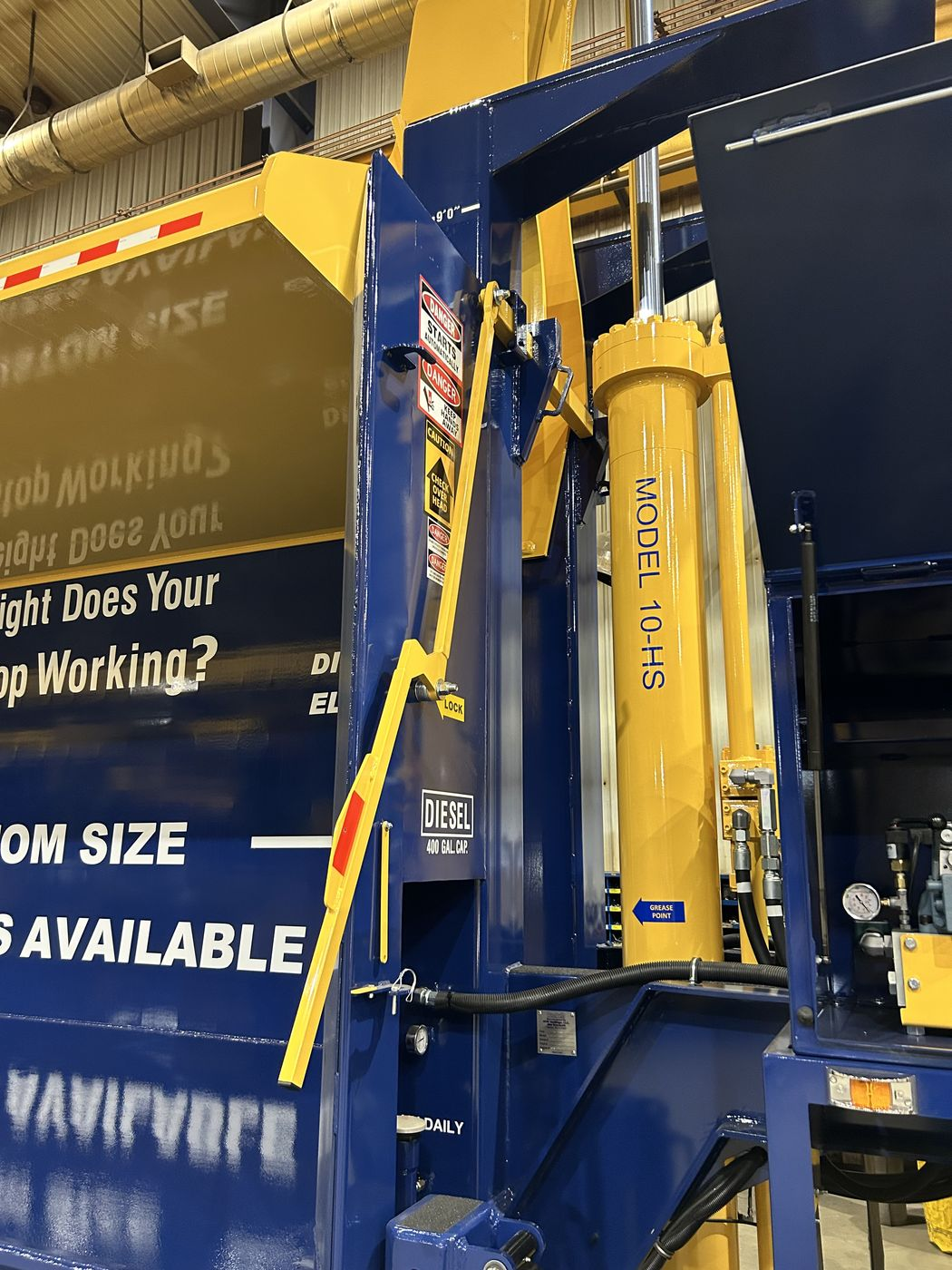

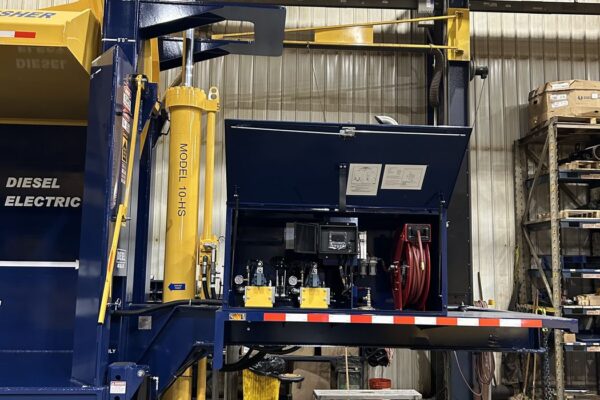

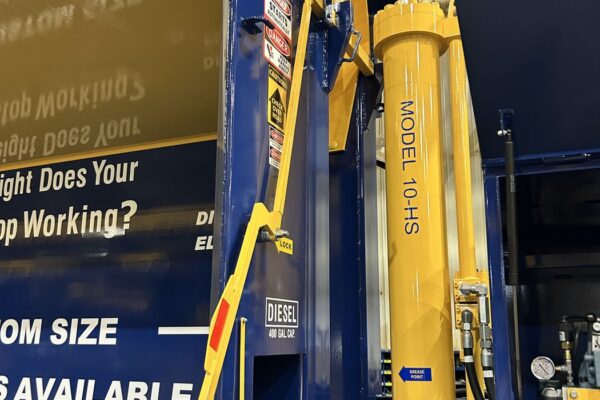

Hydraulic Cylinders

Bore10”
Rod4”
Travel96”
Pressure2400 psi
Crushing Force159 Tons

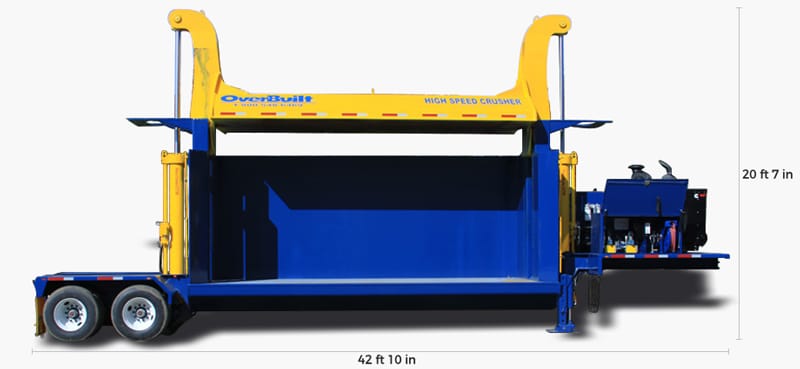

Overall

Weight60,000 lbs
Length43’, 45’, 47’
Height20’ 7”
Ground Clearance16”

*** Special built 9’ raised and 12” lowered unit available upon request.

Please contact us for more information.

Crusher Opening

Height (raised)3.048 m ***
Height (lowered)60.96 cm
Width2.286 m
Length6.172 m, 6.756 m, 7.341 m
Lid Movement (travel)2.438 m

Hydraulic Cylinders

Bore25.4 cm
Rod10.16 cm
Travel243.84 cm
Pressure175.769 kg/cm2
Crushing Force144.242 MT

Overall

Weight27,216 kg
Length13.11 m, 13.72 m, 14.33 m
Height6.27 m
Ground Clearance40.64 cm

*** Special built 2.74 m raised and 30.48 cm lowered unit available upon request.

Please contact us for more information.
